Rubber cable

Rubber cable According to the mechanical external force bearing capacity, rubber cables are divided into three categories: light, medium, and heavy. Heavy duty (YC type) is suitable for port machinery, large-scale agricultural irrigation and drainage stations, and other occasions. Medium duty (YZ type) is used for small electric equipment, while silicone rubber (YGC type) has high temperature or cold resistance characteristics. In addition, derivative types include mining, waterproof, and flame-retardant types

Performance characteristics

The insulation layer and sheath of rubber cables are made of natural rubber or silicone rubber, which has excellent wear resistance, waterproofing, and oil resistance. Its soft structure ensures flexibility in mobile environments, with long-term operating temperatures not exceeding 65 ℃. W-type derived cables are weather resistant and oil resistant, suitable for outdoor or oil contaminated environments

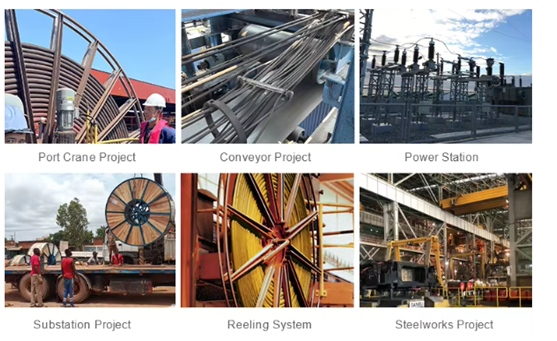

Application scenarios

This type of cable is widely used in mobile electrical equipment, outdoor oil contaminated environments, and harsh environments. Typical scenarios include small electric tools, agricultural electrification, port machinery, searchlights, large hydraulic irrigation stations, etc Silicone rubber cables are commonly used for connecting mobile electrical appliances in high-altitude or high-temperature areas due to their cold and heat resistance characteristics

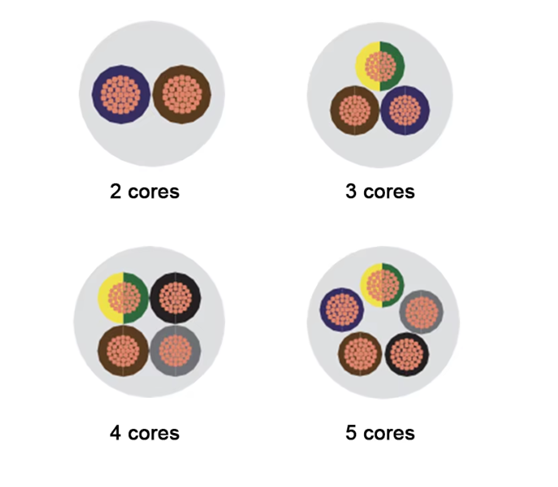

Normal area     mm	Structure     rm	Insulation thickness            n	Overalldia. mam
2X0.75	24/0.20	0.60	7.5
2X1.0	32/020	0.60	78
2X1.5	30/0.25	0.80	92
2X2.5	49/0.25	0.90	IL.0
2X4.0	56/0.30	L00	125
3X1L.5	30/0.25	0.80	92
3X25	49/0.25	090	1.5
3X4.0	56/0.30	L00	13.3
4X25	49/025	0.90	125
4X4.0	56/0.30	L00	148
5X25	49/0.25	090	16.6
5X4.0	56/0.30	100	18.5









Normal area (mm²)	Structure (mm)	Insulated thickness (mm)	Overall dia. (mm)	Normal area (mm²)	Structure (mm)	Insulated thickness (mm)	Overall(mm²) dia. (mm)
2×0.50	28/0.15	0.50	5.20	4×1.00	32/0.20	0.60	8.00
2×0.75	24/0.20	0.50	6.40	4×1.50	30/0.25	0.70	9.20
2×1.00	32/0.20	0.60	6.60	4×2.50	49/0.25	0.80	10.90
2×1.50	30/0.25	0.70	760	4×4.00	56/0.30	0.80	12.80
2×2.50	49/0.25	0.80	9.40	4×6.00	84/0.30	0.80	15.40
3×0.50	28/0.15	0.50	5.50	4×10.00	126/0.32	1.00	17.60
3×0.75	24/0.20	0.50	6.80	4×16.00	126/0.40	1.00	21.10
3×1.00	32/0.20	0.60	7.20	5×1.50	48/0.20	0.70	10.70
3×1.50	30/0.25	0.70	8.50	5×2.50	49/0.25	0.80	12.80
3×2.50	49/0.25	0.80	10.00	5×4.00	56/0.30	0.80	14.50
3×4.00	56/0.30	0.80	11.70	5×6.00	84/0.30	0.80	16.40
3×6.00	84/0.30	0.80	13.00	5×10.00	126/0.32	1.00	20.10
3×10.0	126/0.32	1.00	16.10	5×16.00	126/0.40	1.00	24.40
3x16.0	126/0.40	1.00	19.40



FAQ

Q 1: How to get the right quote? A: Provide detailed quotation requirements, including: cable specification, application, shielding, stretching, total diameter,
etc.

Q2: Why is there no cable I need on this page? A: We can customize various specifications, if you have any needs, please
feel free to contact us.

Q 3: What is your MOQ? A: Usually 300m, but we also accept 100m order

Q 4: When can I get the price and what is the validity period?
A: It is usually valid for two weeks within one day.

Q 5: Can I get samples for free? A: Of course, we can provide stock samples, but there is have freight.
