Aluminum Conductor Steel Reinforced

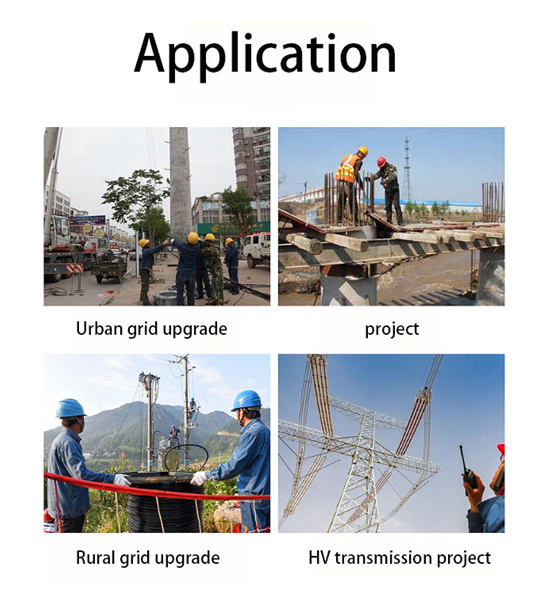

ACSR is a cable made of twisted aluminum and steel wires. It has the characteristics of simple structure, easy installation and maintenance, low line cost, large transmission capacity, good conductivity, high mechanical strength and tensile strength. It is suitable for AC overhead transmission lines, especially for laying across special geographical conditions such as rivers and valleys

Technical Parameter

Conductivity: It has good conductivity and is suitable for high voltage and high current transmission.

Mechanical strength: The steel core provides sufficient mechanical and tensile strength, suitable for use in harsh environments.

Maintenance cost: The installation and maintenance are relatively simple, the line cost is low, and it is suitable for large-scale applications



ACSR Technical Characteristics Based on Standard BS 215-2

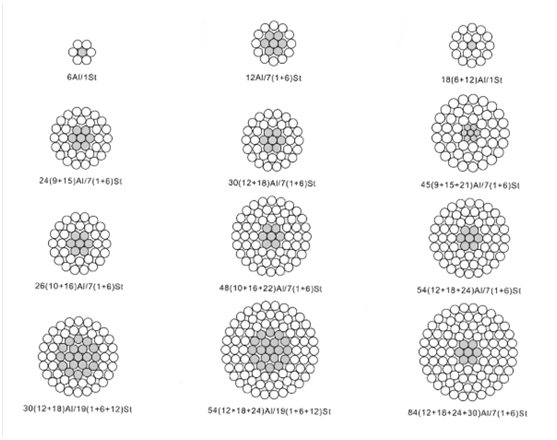

Code name	Nominal aluminium area	Stranding and wire diameter		Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20c	Calculated breaking load
		Al	Steel
	mm²	No./mm		mm²	mm²	mm	kg/km	Ω/km	kN
RABBIT	50	6/3.35	13.35	52.88	61.7	10.05	214	0.5426	18.35
DOG	100	6/4.72	7/1.57	105	118.5	14.15	394	0.2733	32.7
WOLF	150	30/2.597	7/2.59	158.1	194.9	18.13	726	0.1828	69.2
DINGO	150	18/3.35	1/3.35	158.7	167.5	16.75	506	0.1815	35.7
LYNX	175	30/2.79	712.79	183.4	226.2	19.53	842	0.1576	79.8
ZEBRA	400	54/3.18	7/3.18	428.9	484.5	28.62	1621	0.0674	131.9

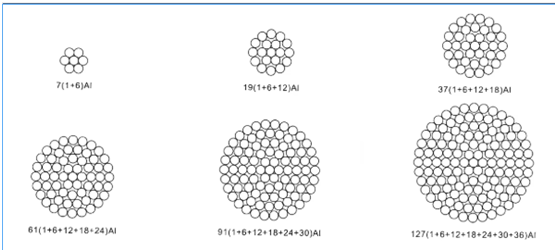

Code Number	Calculated Area	Stranding and Wire Diameter	Overall	Linear	Calculated	Max.D.0.
			Diameter	Mass	Breaking load	Resistance at 20℃
mm²	mm2	mm	mm	Kg/km	daN	Ω/km
16	15.89	7/1.70	5.1	44	290	1.8018
25	24.25	7/2.10	6.3	67	425	1.1808
35	34.36	7/2.50	7.5	94	585	1.8332
50	49.48	7/3.00	9	135	810	0.5786
70	65.82	19/2.10	10.5	181	1150	0.4317
95	95.27	15/2.10	12.5	256	1595	0.3084
120	117	19/280	14	322	1910	0.2459
150	147.1	37/225	15.2	406	2570	0.196
185	181.6	37/2.50	17.5	501	3105	0.1587
240	242.54	61/225	20.2	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.0965
400	400.14	61/289	26	1105	6190	0.07221
500	499.83	61/3.23	29.1	1381	7600	0.05781
625	626.2	91/296	32.6	1733	9690	0.04625
800	802.1	91/3.35	36.8	2219	12055	0.03611
1000	999.71	91/3.74	41.1	2766	14845	0.02897







FAQ

Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.

Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
